Scroll down to move, measure and experience a real point cloud data set and see how your vessel or build process might benefit from this service.
Digital Dry Dock created the point cloud below to demonstrate the capabilities of digital asset management. This exterior data was captured in 3hrs and is just the start of a complete digital twin.
Below are instructions for how to use the web display system.
Scroll down for troubleshooting help if your display does not contain any 3d model.
Click the toggle button in the top left to display the point cloud options.

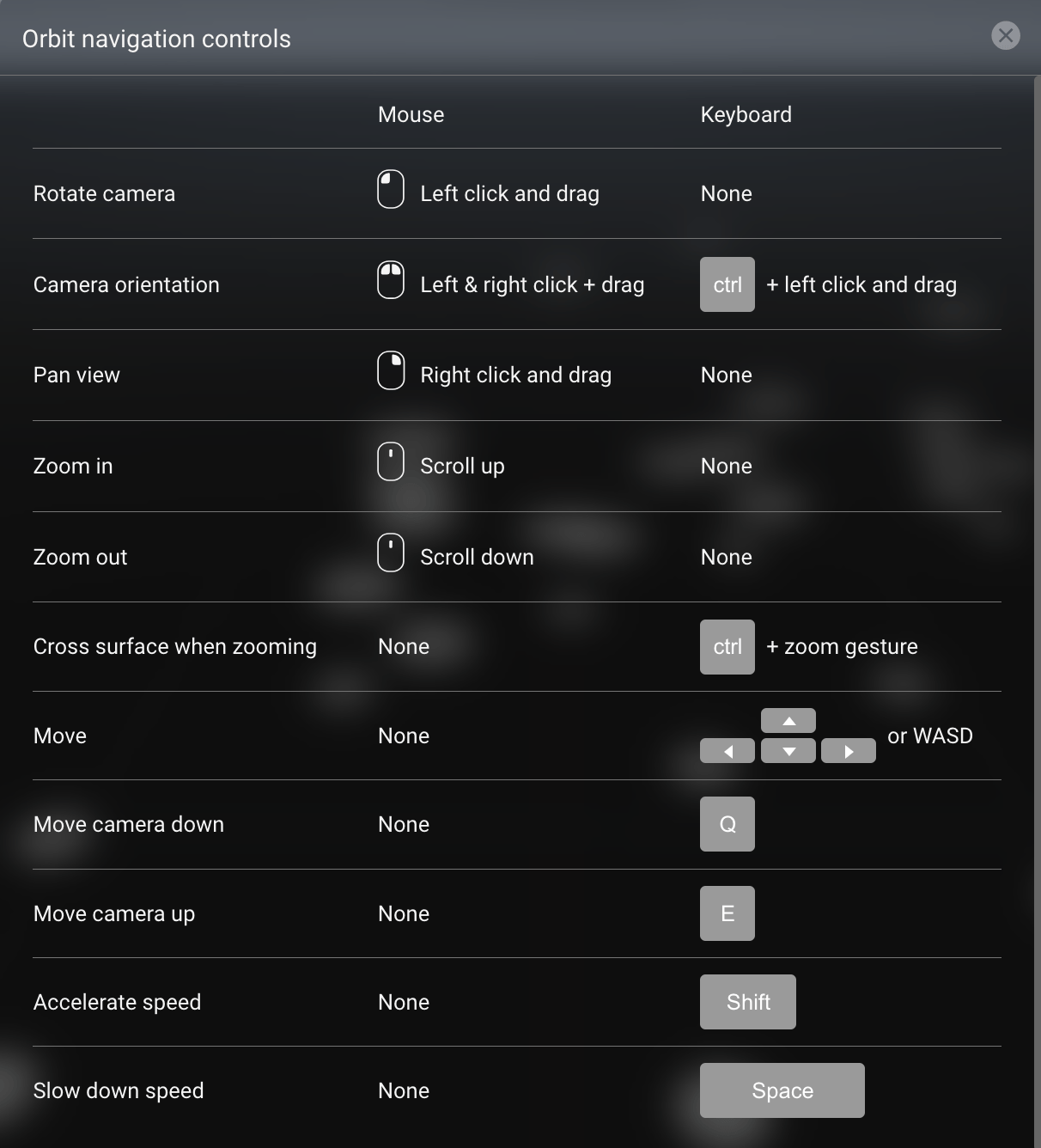

The 'Tools' tab allows for measurements to be taken from one sample point to another. From here, you may also change the navigation mode to allow for fine turning of the view.
By clicking on the 'Appearance' tab above the Tools window, you will be given the option to increase or decrease the display quality and turn on other viewer features (not all features are supported in all browsers at this time).
The point cloud web display view uses WebGL 2.0. This is a new technology and some uses may experience difficulties displaying the point cloud in their browser.
To see if your browser currently supports WebGL 2.o try this link https://get.webgl.org/webgl2/
Many modern browsers allow WebGL2, but it needs to be turned on. For more information about how to enable WebGL 2.0 see this wiki how article https://www.wikihow.com/Enable-Webgl
For iPhone use Safari and enable WebGL 2.0 in Settings -> Safari -> Advanced -> Experimental Features -> WebGL 2.0
Or if you would like help please don't hesitate to contact us.
This digital twin is displayed with permission from the vessel owner. The web view displayed is for sample display only and is not representational of the CAD quality LAS dataset delivered by Digital Dry Dock.
